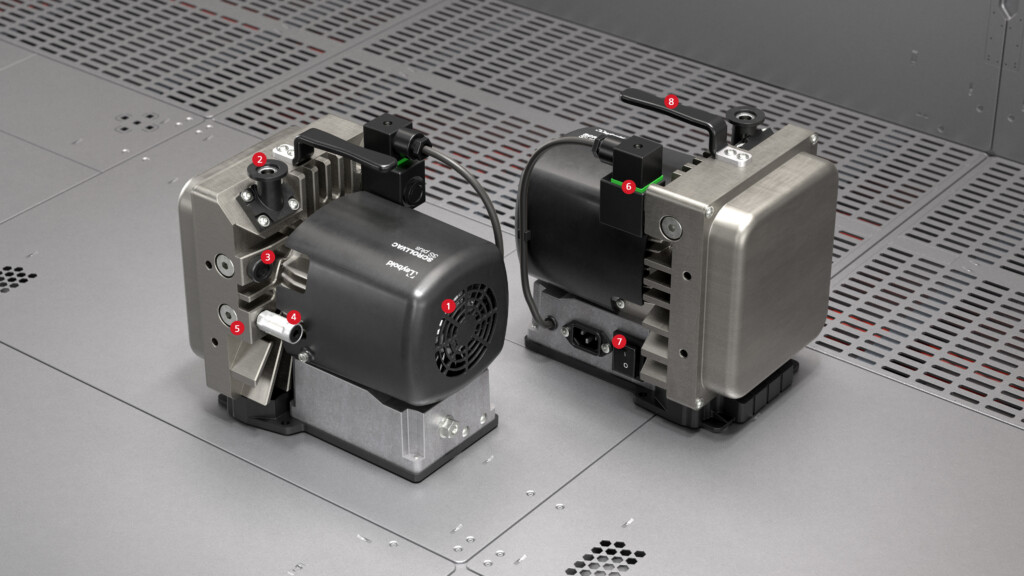

    1. Mains driven motor

  2. 2

    2. DN 16 ISO-KF inlet flange

  3. 3

    3. Gas ballast

  4. 4

    4. Push-fit exhaust fitting

  5. 5

    5. Exhaust valve

  6. 6

    6. Solenoid inlet valve* with 10 sec delay relay

  7. 7

    7. On/Off switch

  8. 8

    8. Carry handle

  1. 1. Mains driven motor

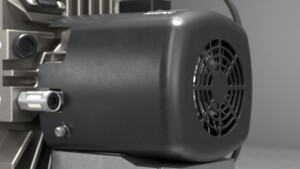

    ◼ Compact air cooled motor
    ◼ Select appropriate motor variant for local electric supply
    ◼ Plug in IEC power cable
    ◼ On/off switch for local control
    ◼ Easy to set up and run

  2. 2. DN 16 ISO-KF inlet flange

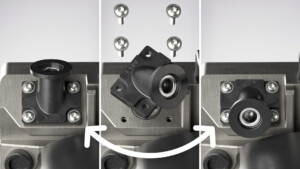

    Vertical or horizontal orientation for flexible system design.
    Push-fit connection available as an accessory.

  3. 3. Gas ballast

    Manually configured for light gas pumping and low vapour load handling, with optional adaptor for inert gases

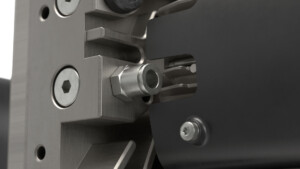

  4. 4. Push-fit exhaust fitting

    For easy connection, available on both models

  5. 5. Exhaust valve

    Preventing rapid pressure rise in the backing line

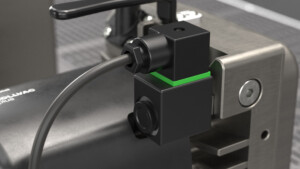

  6. 6. Solenoid inlet valve* with 10 sec delay relay

    Extra protection in the event of power failure.
    (* supplied fitted with SCROLLVAC 3Splus)

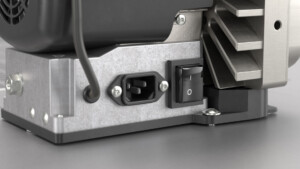

  7. 7. On/Off switch

    Full control, even if plugged in at a distance from the unit itself

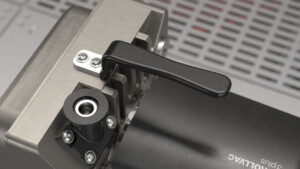

  8. 8. Carry handle

    Built for mobility and flexible installation
