Compact, versatile & reliable

Every TURBOLAB comes with a Turbo Power unit for control, configuration and monitoring of your pump system. Here below you find an overview of the standard equipment as well as accessories and options to finetune and complete your TURBOLAB vacuum system.

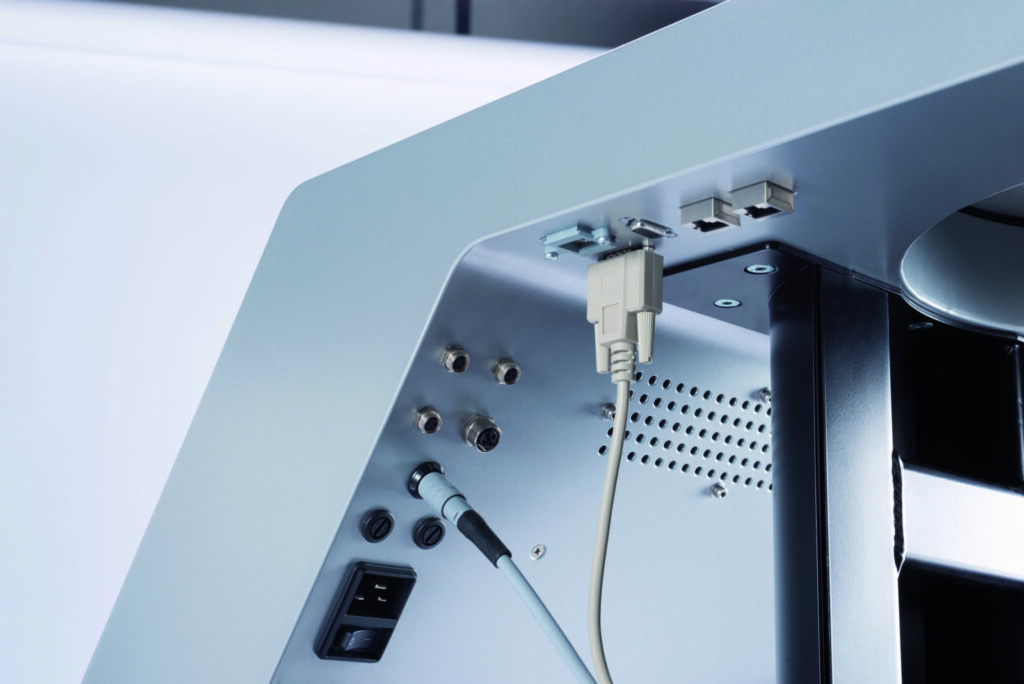

Built-in support for accessories

  • Purge
  • Vent
  • Air cooling
  • Flange heater
  • 2 pressure gauges

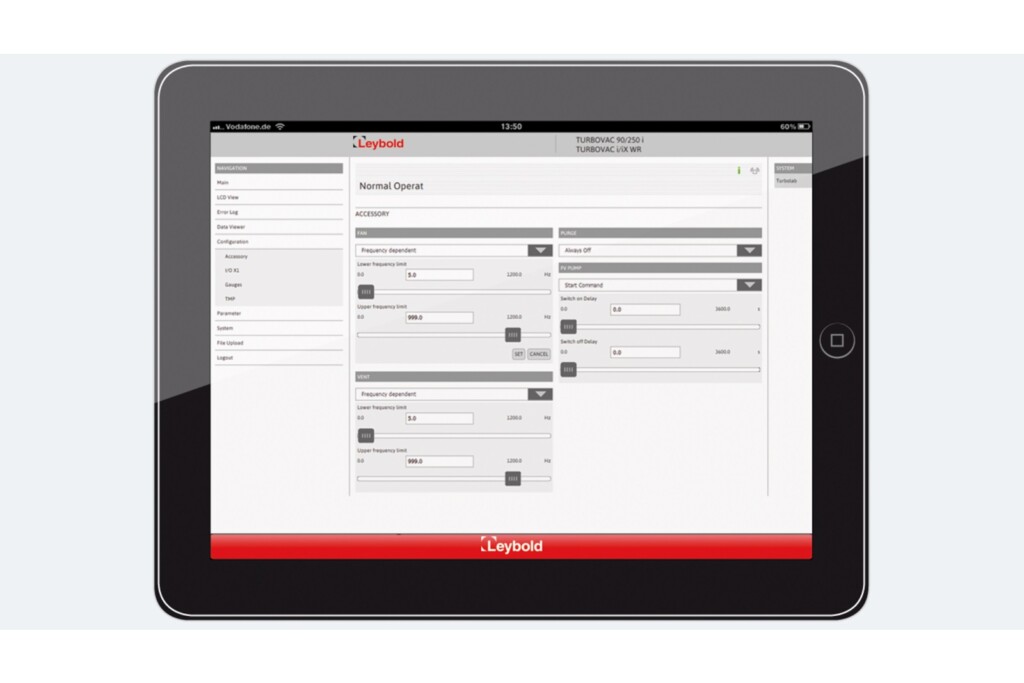

Built in webserver

  • Condition monitoring
  • Data analysis
  • Software updates
  • Control, monitor and configure your TURBOLAB system

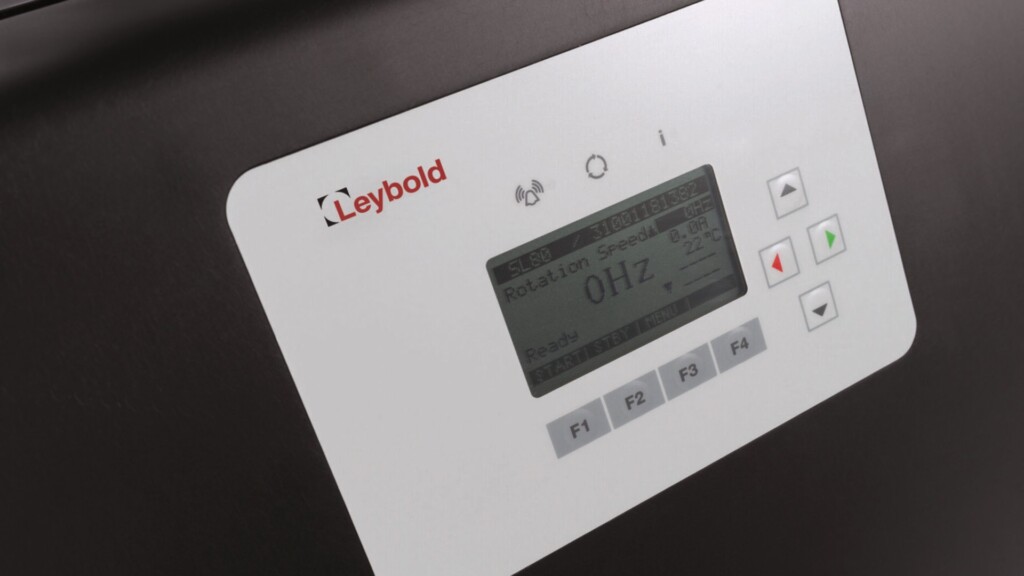

Backlit display (cart version)

  • Remote Control (via the X1 interface):
  • Configurable X1 digital/analogue I/O
  • Start/stop
  • Error
  • Warning
  • Analogue output

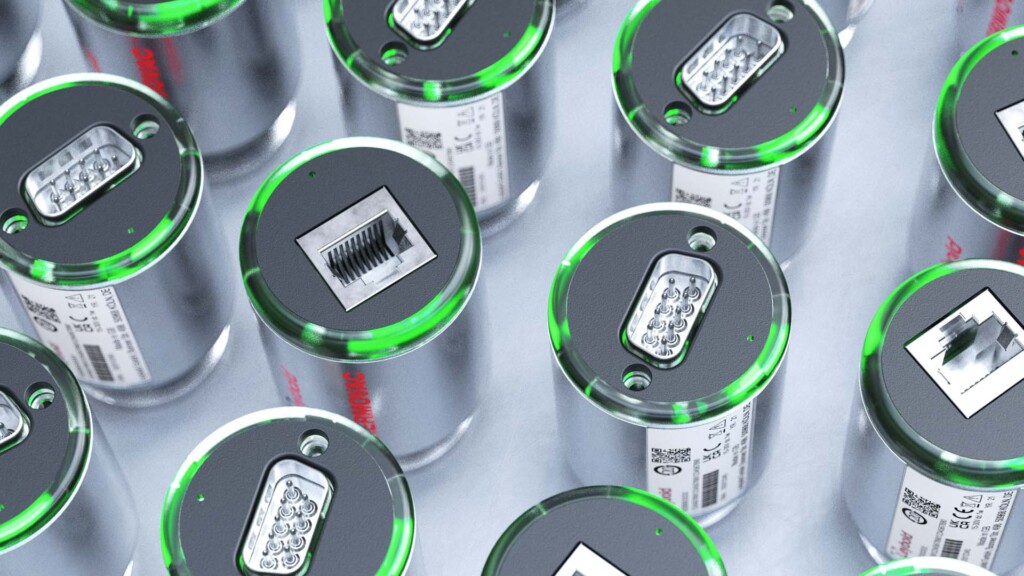

2 x vacuum pressure gauges

  • High vacuum sensor: PENNINGVAC PTR 90 RN
  • Fore-vacuum sensor: THERMOVAC TTR 91 RN or THERMOVAC TTR 101 RN
  • Alternatively, ISO-K or CF connection

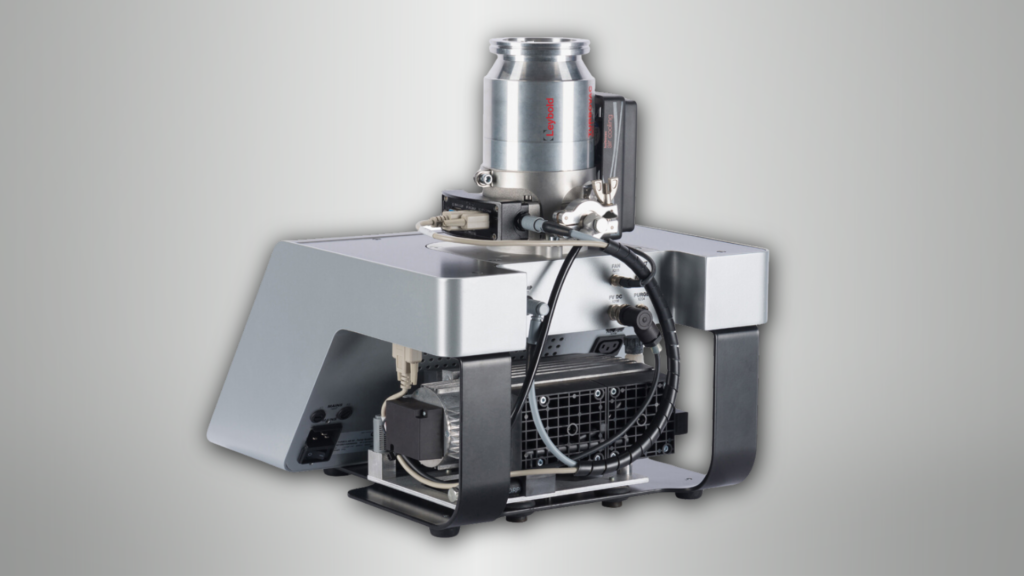

Accessories & options

  • Purge gas or venting valve
  • Air or water cooling unit
  • Flange heaterband
  • Safety valve
  • Adsorption trap
  • Exhaust filter
  • Relocation kit to operate your turbomolecular pumps at your chamber
