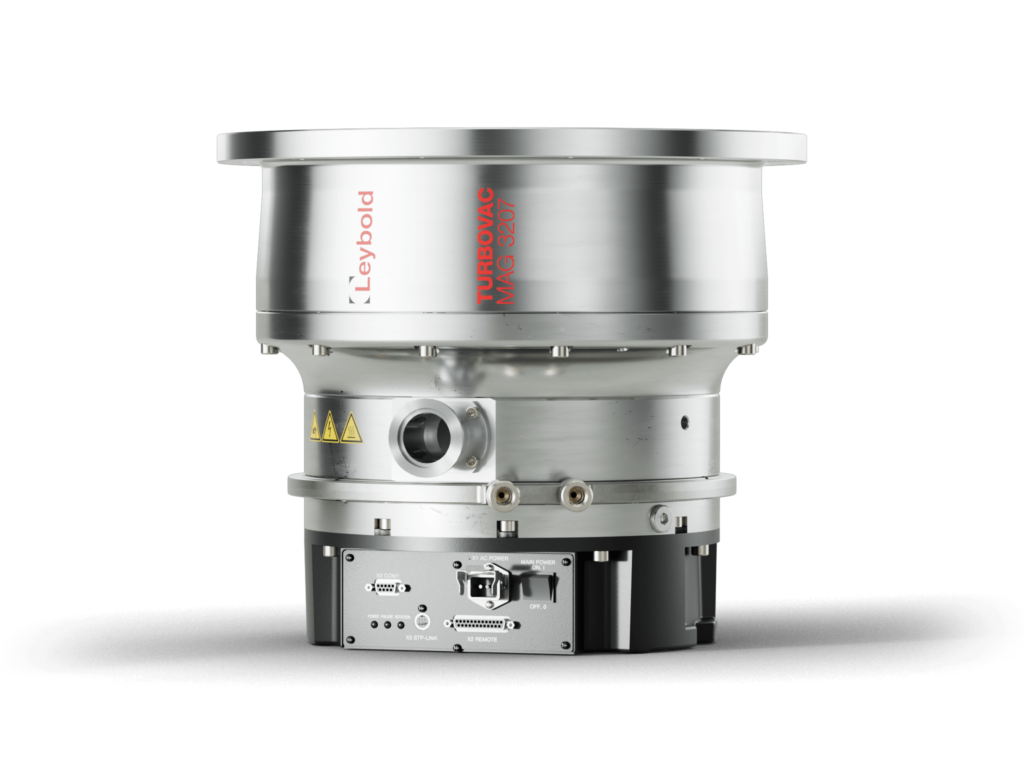

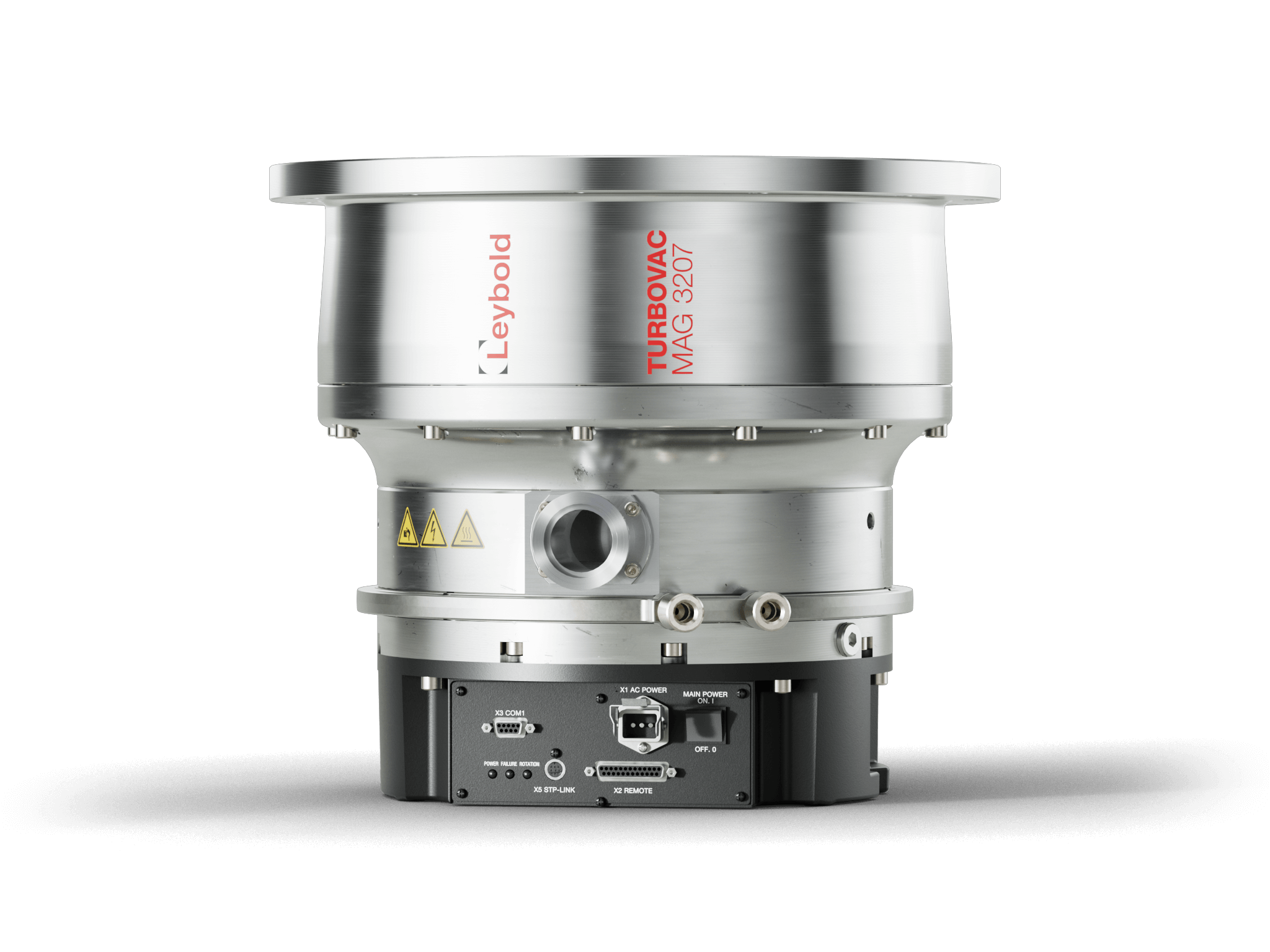

TURBOVAC MAG iS

Product
On
Off
Labels
  1. 1

    High vacuum flange (no zoom)

  2. 2

    Fore-vacuum flange (25% zoom, text right)

  3. 3

    Cooling water connections (zoom, pop-up top left)

  4. 4

    Purge gas port (zoom, pop-up bottom right)

  5. 5

    Integrated controller (zoom, pop-up top right)

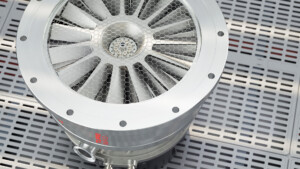

  1. High vacuum flange (no zoom)

    Connects your vacuum pump to the chamber, available in flange sizes of DN250 and DN320

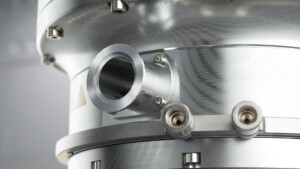

  2. Fore-vacuum flange (25% zoom, text right)

    Connects to the fore-vacuum pump via DN 40 KF

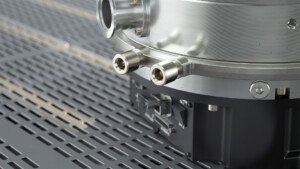

  3. Cooling water connections (zoom, pop-up top left)

    Efficient cooling of your pump enabled via inlet/outlet ports

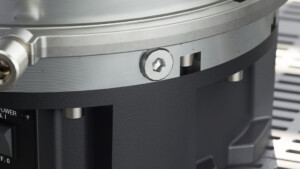

  4. Purge gas port (zoom, pop-up bottom right)

    Protects the bearing against harmful process media

  5. Integrated controller (zoom, pop-up top right)
    • I/O interface as standard and optional Profibus or RS485/RS232
    • STP-link (Service To Pump) for control, monitoring, parameter setting, data logging, etc
    • On/off switch and socket for local power control
