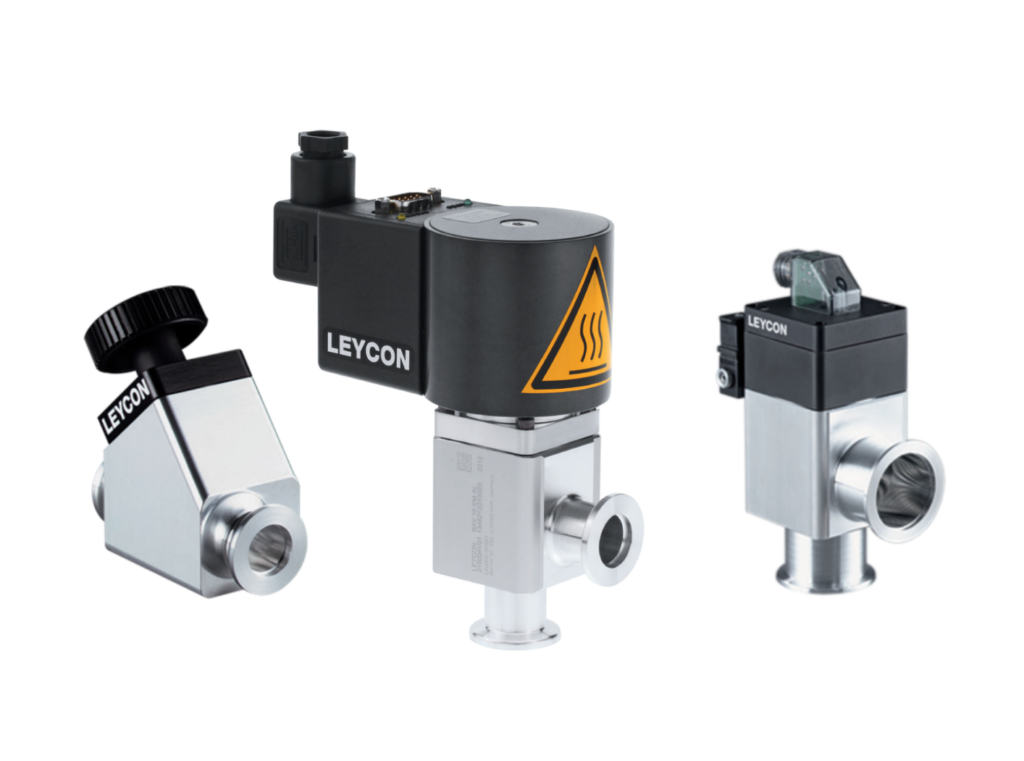

Bellows-sealed, with various drive types

Valves from the ISO-KF range are suited to high-vacuum applications such as pump systems, semiconductor technology and research systems. Their rugged and intelligent valve design guarantees a high degree of impermeability and particulate resistance.

ISO-KF right-angle and straight-through valves

Drive types

Manual
Pneumatic
Electropneumatic
Electromagnetic (right-angle valves only)

Casing material

Aluminum construction
Stainless steel construction

Your Benefits

Manual

Simple operability with low physical effort
Allows reduced plant ventilation in a targeted manner
Suitable for use as a coarse variable leak valve for manual flow control
Space saving: compact size thanks to efficient construction
Maximum flexibility: any orientation is possible

Electropneumatic

Time saving installation thanks to standards compliant electrical & compressed air connections
Low noise and vibration when opening and closing
High process efficiency thanks to very short opening/closing times
High degree of safety due to a normally closed design
Maximum flexibility: any orientation & flow direction is possible
Optical position indicator for straightforward process monitoring

Electromagnetic

Ideal for remote control on vacuum units
Convenient process monitoring through an LED position indicator for valve open, valve closed and valve error states
High process efficiency thanks to very short opening and closing times
High degree of safety thanks to a normally closed design
Maximum flexibility: any orientation and flow direction is possible
Low operating temperature

Right-angle and straight-through valves up to DN 50 ISO-KF

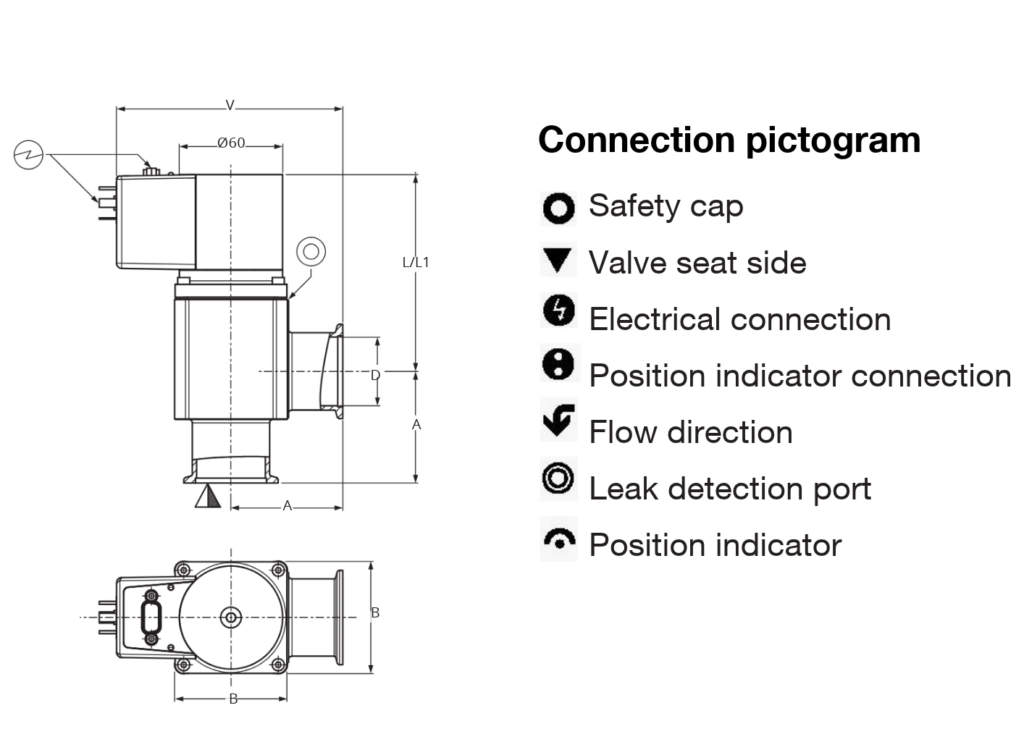

Dimensional drawing (mm) shows stainless steel right-angle valve, DN ISO-KF, with electromagnetic drive, as an example.


DN	ISO-KF	16	25	40
A	mm	170.9	193	246
B	mm	51.4	64.9	92.9
C	mm	40	50	65
D	mm	96	112.7	139
E	mm	86	97.3	119.5
F	mm	59	70	90
G	mm	10	15.4	19.5

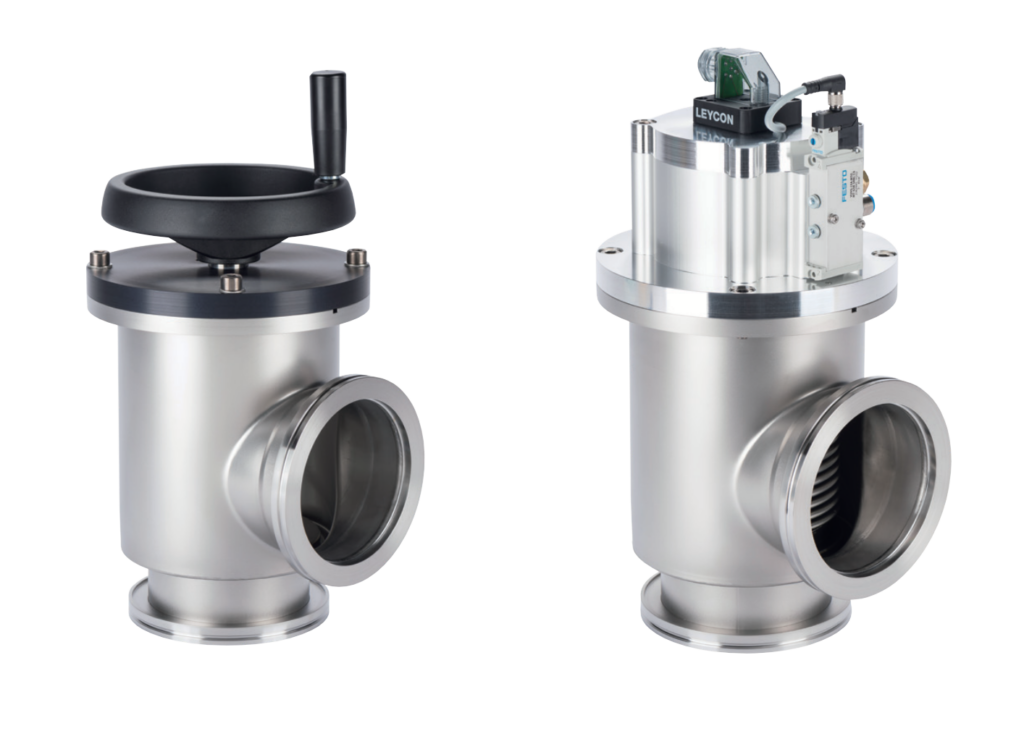

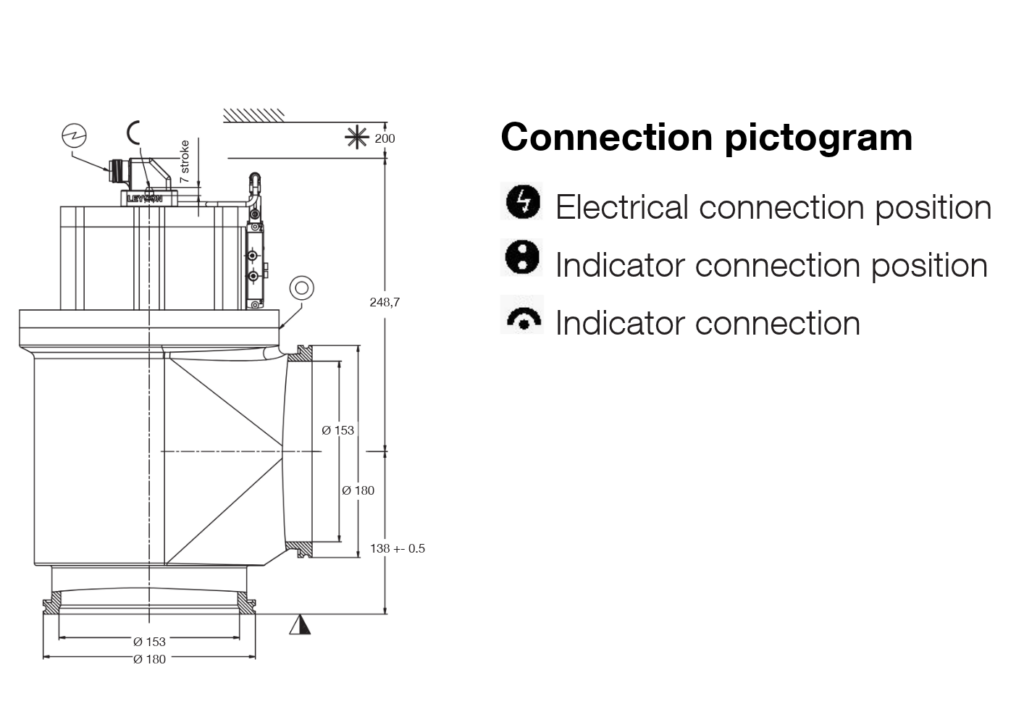

ISO-K right-angle valves

The ISO-K range offers reliable valves of very high quality. Due to their modular construction, these valves are easy to maintain and can be adapted to changing requirements almost at will.
