The right valve for your application

SECUVAC safety valves have been specially designed for connecting to rotating vacuum pumps without a built-in inlet valve.

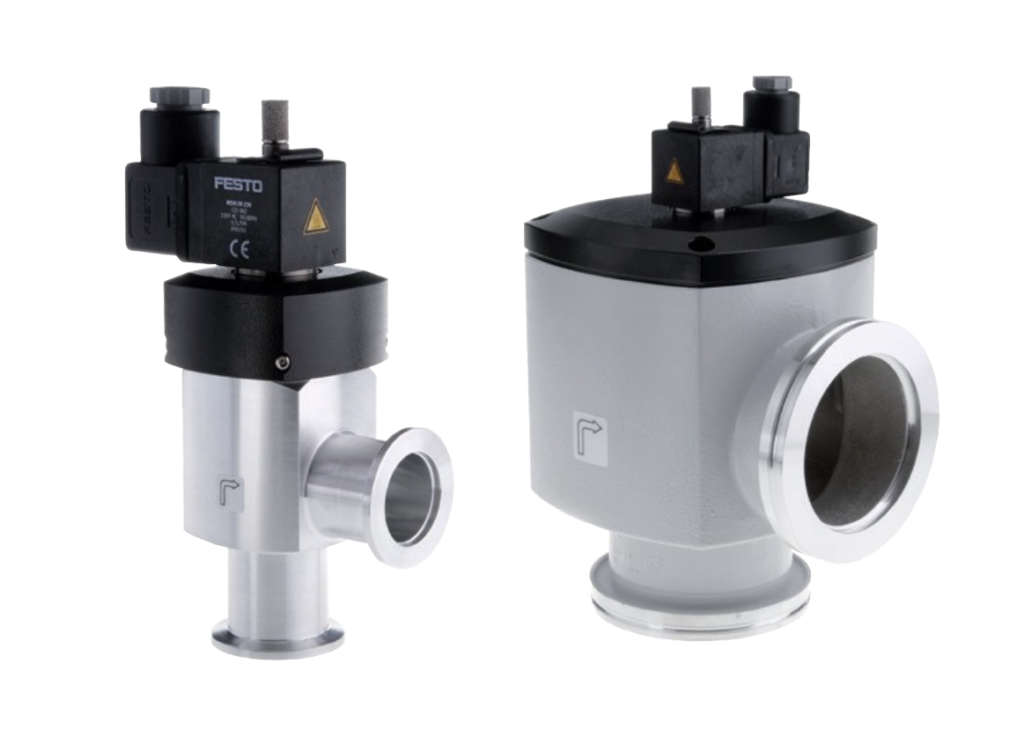

SECUVAC Safety valves

SECUVAC safety valves (DN 16 ISO-KF to DN 100 ISO-KF) with electromagnetic drive 24 V DC, 100-115 V AC, 200-230 V AC

Shut-off valve between backing pump and vacuum chamber to prevent ventilation if a power failure occurs.

Your Benefits

  • Rapid closure high vacuum shut-off valve
  • Can be used as a venting valve
  • Closes immediately in the case of a power failure
  • Can only be opened once the intake line has
  • been evacuated
  • No “air swallowing”

Drive types
Electromagnetic

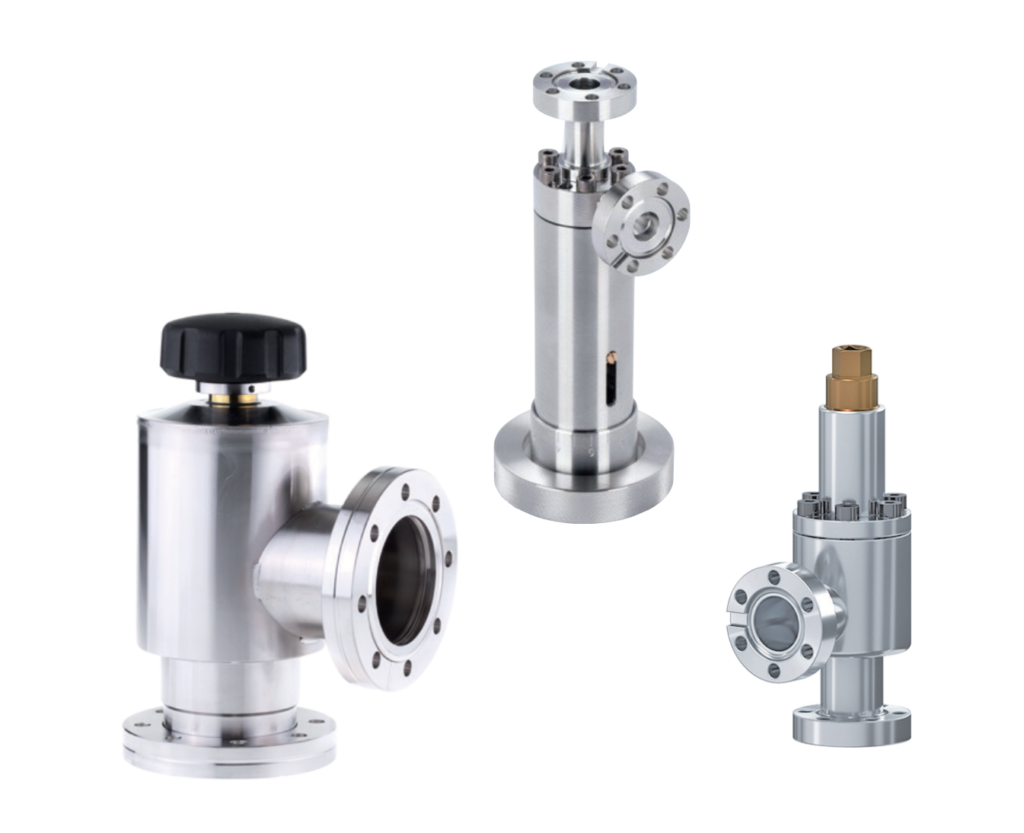

UHV valves

  • All-metal angle valves, rotatable, with manual drive. Available in flange sizes DN 16 CF, DN 40 CF and DN 63 CF
  • Dosing valves with stainless steel housing. DN 16 CF / DN 40 CF (inlet/outlet)

A reliable solution for all applications in ultra high vacuum.

The innovative design and rotatable CF flanges allow a convenient handling and an easy installation.

Reliability is achieved by the use of optimal sealing materials. The silver-coated sealing with its very long service life is maintenance free at more than 1000 cycles.

A mechanical stop prevents the valve from too much torque that might cause damages to the sealing. It also indicates when the valve is fully closed.

To operate the valve a plastic hand wheel and a metal T-handle are available (T-handle is suited for heating processes and does not need to be removed).

Your Benefits

  • Very reliable sealing
  • Maintenance free for over 1000 cycles
  • Very easy to use, mechanical stop prevents from over torque
  • T-handle available for bake out processes
  • Coated spindle, no lubrication necessary
  • Very long lifetime thanks to the coated metal sealing

Drive types

  • Manual

Casing material

  • Stainless steel housing
  • All-metal construction
